Plotting Data with Python

· 8 min read
Josh Kaplan
Software Engineer

Regardless of discipline, many fields need to be able to process, manipulate, and visualize data. This article introduces the basics of plotting data with Python using Matplotlib. View the notebook on Github or experiment with it yourself on Google Colab.

Prerequisites​

You must have Python with Matplotlib and NumPy installed to follow along with this on your own (Google Colab does this for you). If you want to set this up on your own machine, I recommend using the Anaconda Python distribution.

Initial Setup​

We'll begin with the line %matplotlib inline. This is specific to notebooks and tells the notebook to render matplotlib plots inline. We then import the libraries we'll use throughout our examples. In this case, numpy and matplotlib.pyplot.

%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt

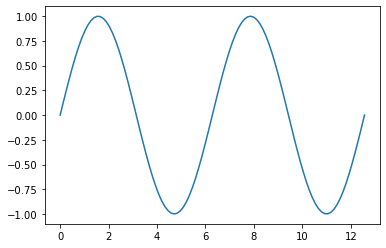

A Simple Plot​

Our first plot is a simple sine plot using np.sin. First we use np.linspace to create a list (or NumPy array in this case) of all our X points. In this case, an evenly spaced list from 00 to 4π4\pi with 100 points. We then generate our Y points by calling np.sin on the X list. Finally, we can use plt.plot(x, y) to plot the results.

x = np.linspace(0, 4*np.pi, 100)
y = np.sin(x)

plt.plot(x, y)
plt.show()

png

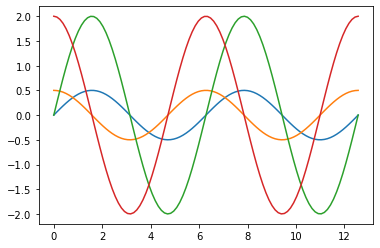

Multiple Lines​

Now we'll plot multiple lines on a single chart. In this case,

  • y1=0.5sin⁡(x)y_1 = 0.5 \sin{(x)}
  • y2=0.5cos⁡(x)y_2 = 0.5 \cos{(x)}
  • y3=2sin⁡(x)y_3 = 2 \sin{(x)}
  • y4=2cos⁡(x)y_4 = 2 \cos{(x)}.

We have the option of calling plt.plot once as plt.plot(x, y1, x, y2, x, y3, x, y4) or once for each plot (shown below).

x = np.linspace(0, 4*np.pi, 100)
y1 = 0.5*np.sin(x)
y2 = 0.5*np.cos(x)
y3 = 2*np.sin(x)
y4 = 2*np.cos(x)

plt.plot(x, y1)
plt.plot(x, y2)
plt.plot(x, y3)
plt.plot(x, y4)
plt.show()

png

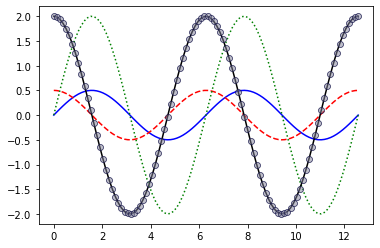

Line Styles​

We can pass additional arguments to plot() to specify the line style. The first way to provide a format string. That might look something like '-b' or '--sy'. We can specify the line style, marker style, and color with this format string. For example - tells matplotlib to make the line solid, -- is dashed, and : is dotted. We can also define the marker style. In our '--sy' example, s declares that the marker should be square. The full list of marker codes can be found here. Finally, we can specify the color. The following color codes are available:

  • b is blue
  • r is red
  • g is green
  • c is cyan
  • m is magenta
  • y is yellow
  • k is black

If we want to customize our plot styles further, we can use a variety of keyword arguments such as markersize and linewidth to modify the plot style. The full list of options is available here.

# Solid, blue line
plt.plot(x, y1, '-b')

# Red, dashed line
plt.plot(x, y2, '--r')

# Dotted, green line
plt.plot(x, y3, ':g', linewidth=1.5)

# We call also use keyword arguments
plt.plot(
    x, y4, '-ok',
    markersize=6,
    markeredgewidth=0.75,
    markeredgecolor=[0.1, 0.1, 0.3, 0.9],
    markerfacecolor=[0.5, 0.5, 0.6, 0.5]
)
plt.show()

png

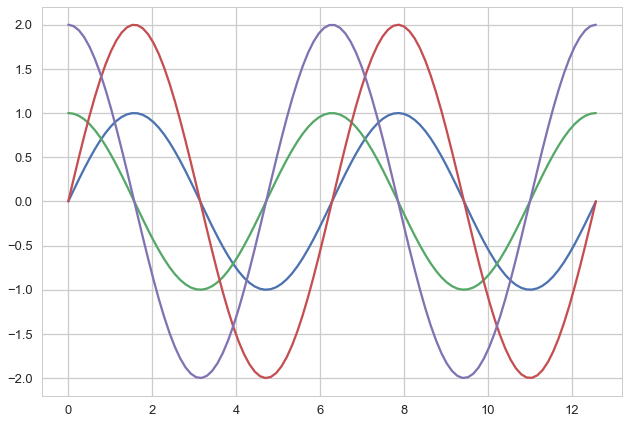

Using Stylesheets​

If we want to change a lot more about our plot with a lot less code, we can use stylesheets. Matplotlib comes with several predefined stylesheets. We can use plt.style.available to see the list of available style sheets.

print(plt.style.available)

['Solarize_Light2', '_classic_test_patch', 'bmh', 'classic', 'dark_background', 'fast', 'fivethirtyeight', 'ggplot', 'grayscale', 'seaborn', 'seaborn-bright', 'seaborn-colorblind', 'seaborn-dark', 'seaborn-dark-palette', 'seaborn-darkgrid', 'seaborn-deep', 'seaborn-muted', 'seaborn-notebook', 'seaborn-paper', 'seaborn-pastel', 'seaborn-poster', 'seaborn-talk', 'seaborn-ticks', 'seaborn-white', 'seaborn-whitegrid', 'tableau-colorblind10']

In this case, we'll combine a few style sheets that set the plot size, grid colors, and line colors to create a graph with a clean style without having to specify the style of each line.

plt.style.use('seaborn-talk')
plt.style.use('seaborn-whitegrid')
plt.style.use('seaborn-deep')

x = np.linspace(0, 4*np.pi, 100)
y1 = np.sin(x)
y2 = np.cos(x)
y3 = 2*np.sin(x)
y4 = 2*np.cos(x)

plt.plot(x, y1, x, y2, x, y3, x, y4)
plt.show()

png

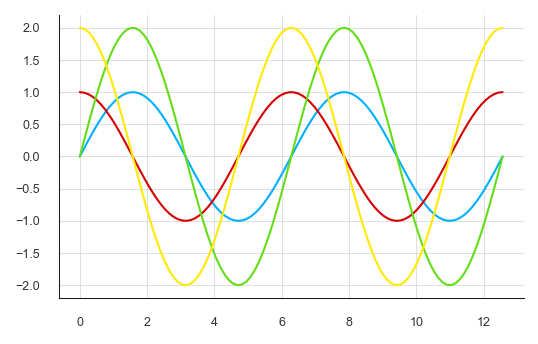

We can also create our own style sheet. The one for this example can be found on GitHub. This stylesheet defines the plot size, custom colors, and a bit more.

plt.style.use('mystyle.mplstyle')
plt.plot(x, y1, x, y2, x, y3, x, y4)
plt.show()

png

Scatter Plots​

Now we can use plt.scatter to plot some noisy data. According to Jake VanderPlas, plt.plot is much more efficient than plt.scatter for larger data sets.

x = np.linspace(0, 8, 100)
y = 2*x

# Add noise
noisy = [point + 5*np.random.random() - 5*np.random.random() for point in y]

plt.scatter(x, noisy, marker='o', s=2)
plt.show()

png

Best Fit Line​

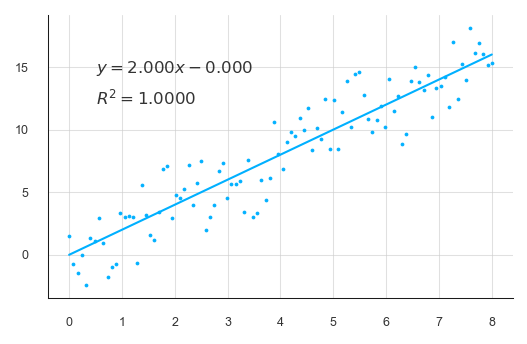

Now we can use NumPy's polyfit to generate a polynomial fit line. We'll also add some text to the plot to show the equation of the line and the R-squared value.

# Fit line
degree = 1
fit = np.polyfit(x, y, degree)
bfline = fit[0]*x + fit[1]

# R-squared
correlation_matrix = np.corrcoef(x, y)
correlation_xy = correlation_matrix[0,1]
r_squared = correlation_xy**2

# R-squared
p = np.poly1d(fit)
yhat = p(x)
ybar = np.sum(y)/len(y)
ssreg = np.sum((yhat-ybar)**2)
sstot = np.sum((y - ybar)**2)
r_squared = ssreg / sstot

# Plot data points and line fit
plt.scatter(x, noisy, marker='o', s=2)
plt.plot(x, bfline)

# Generate labels and show plot
m = f'{fit[0]:.3f}'
b = f'{fit[1]:.3f}'
op = '' if b.startswith('-') else '+'
eq_label = f'$y = {m}x {op} {b}$'
r_label = f'$R^2 = {r_squared:.4f}$'
plt.text(0.5, 14.5, eq_label, fontsize=8)
plt.text(0.5, 12, r_label, fontsize=8)
plt.show()

png

Subplots​

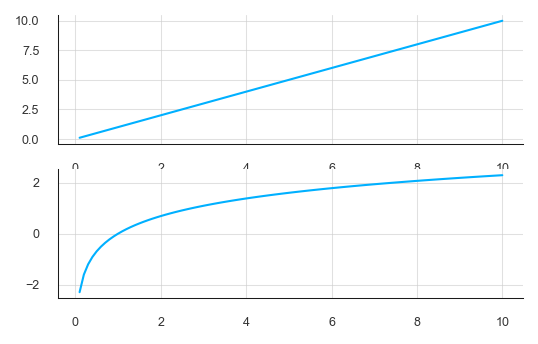

We can also generate and plot multiple graphs in a single figure using subplots. The simplest way to do this is call plt.subplot(). Subplot takes three arguments: the number of rows, the number of columns, and the position of the next plot.

x = np.linspace(0.1, 10, 100)

plt.subplot(2,1,1)
plt.plot(x, x)

plt.subplot(2,1,2)
plt.plot(x, np.log(x))

plt.show()

png

FFT Example​

Let's look at another example using a Fast-Fourier Transform (FFT). This example is based on this page from UC Berkeley. First we need to generate an aggregate signal. In this case, our signal consists of three sine waves of varying frequencies and amplitudes.

# Complex signal
sr = 2000 # sampling rate
ts = 1.0/sr # sampling interval
t = np.arange(0,2,ts)

freq = 1
A = 3
x = A*np.sin(2*np.pi*freq*t)

freq = 3.5
A = 1.5
x += A*np.sin(2*np.pi*freq*t)

freq = 6
A = 0.5
x += A* np.sin(2*np.pi*freq*t)

freq = 9.5
A = 1.5
x += A* np.sin(2*np.pi*freq*t)

freq = 0.5
A = 1
x += A* np.sin(2*np.pi*freq*t)

Then, we can compute the fast-fourier transform (FFT) of the plot using NumPy's fft module.

X = np.fft.fft(x)
N = len(X)
n = np.arange(N)
T = N/sr
freq = n/T
F = np.abs(X)
print(F)

[3.12747923e-14 2.00000000e+03 6.00000000e+03 ... 2.35140134e-13 6.00000000e+03 2.00000000e+03]

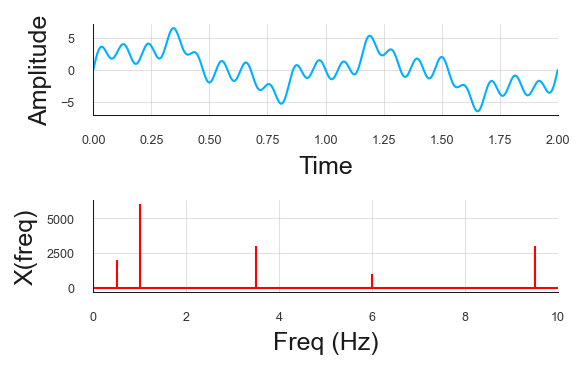

Then we will create a figure with subplots (2 rows and 1 column) and plot the time series signal on the top set of axes and the frequency domain on the bottom.

fig, axs = plt.subplots(2, 1)

axs[0].plot(t, x)
axs[0].set_xlim(0, 2)
axs[0].set_xlabel('Time')
axs[0].set_ylabel('Amplitude')
axs[0].grid(True)

axs[1].stem(freq, F, 'r', markerfmt=" ", basefmt="-r")
axs[1].set_xlim(0, 10)
axs[1].set_xlabel('Freq (Hz)')
axs[1].set_ylabel('X(freq)')
axs[1].grid(True)

plt.tight_layout()
plt.show()

png

Formatting​

With some basics of plotting covered, its worth introducing some formatting basics to make your plots a bit more professional and detailed.

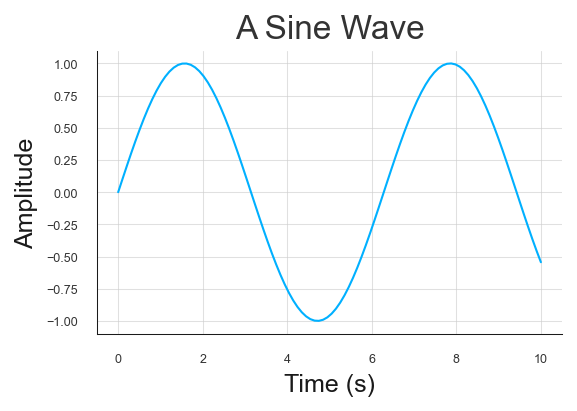

Titles and Axes Labels​

Matplotlib provides .title(), .xlabel(), and .ylabel() functions to add plot titles and axes labels.

x = np.linspace(0, 10, 100)
y = np.sin(x)

plt.plot(x, y)
plt.title('A Sine Wave')
plt.ylabel('Amplitude')
plt.xlabel('Time (s)')
plt.show()

png

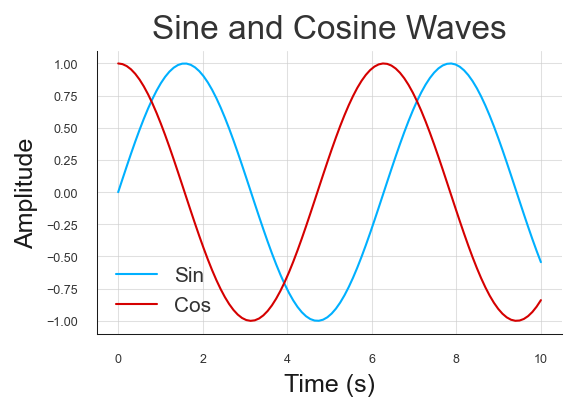

Legends​

The .legend() function allows you to add a legend to the plot.

#plt.style.use('classic')
#plt.style.use('seaborn')
#plt.style.use('seaborn-paper')

x = np.linspace(0, 10, 100)
y1 = np.sin(x)
y2 = np.cos(x)

plt.plot(x, y1, x, y2)
plt.title('Sine and Cosine Waves')
plt.ylabel('Amplitude')
plt.xlabel('Time (s)')
plt.legend(['Sin', 'Cos'], fontsize=10)
plt.show()

png

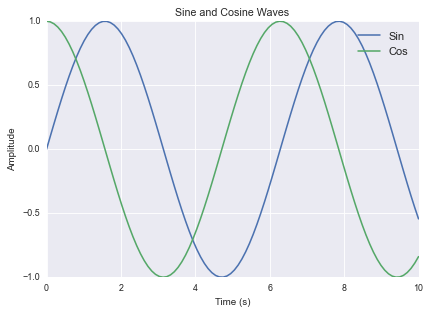

Saving Figures​

We can use plt.savefig() to save the current figure. In the example below, we style and generate a plot, then call plt.gcf() to get the current figure, then adjust its size, and use savefig() to save the figure as a JPEG image.

plt.style.use('classic')
plt.style.use('seaborn')
plt.style.use('seaborn-paper')

x = np.linspace(0, 10, 100)
y1 = np.sin(x)
y2 = np.cos(x)

plt.plot(x, y1, x, y2)
plt.title('Sine and Cosine Waves')
plt.ylabel('Amplitude')
plt.xlabel('Time (s)')
plt.legend(['Sin', 'Cos'], fontsize=10)


# Ge the current figure and update its size
fig = plt.gcf()
fig.set_size_inches(6, 4)

# Save the figure
plt.savefig('output.jpg', dpi=300)
plt.show()

png

Additional Resources​

This barely scratches the surface of what can be done with Matplotlib. For more examples, check out the matplotlib example gallery.
